BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance
BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance

BNR Custom FULL Suspension SETUP YFZ450R With LoneStar High Ground Clearance

Sold out
$5,999.00
Shipping calculated at checkout.

- The full suspension kit that comes with everything you need, all from one place.

- Top of the line setup that has been proven to be the best in its market!

- Fully custom setup,  specially tuned for the rider

Call (330)549-9799 or email bnrmotorsports@hotmail.com or text (330)774-1123 for current lead times and build specifics for shocks

- LTR Geometry Setup

Kit Includes:

- BNR Springer (Fox) Custom Front Shocks

    • Custom Built Spring Shock First on the Market
    • High end Coatings
    • ****Please call with current lead time*****
    • If purchase online will need to contact us for build specifics
    • High/Low Speed Compression and Rebound Adjust
    • Quick adjust crossover
    • Quick adjust preload collar
    • High Viscosity Oil
    • Tested for years at the highest levels of xc and mx racing
    • Pro championship winning shocks
    • All springers are set up for triple rate springs, unless said otherwise.

- Custom Fox Podium 2.0 Rear Shock
    • High end coating
    • High/Low Speed Compression and Rebound Adjustment
    • High Viscosity Oil
    • Tested for years at the highest levels of mx and xc racing
    • Swivel hose to remote oil reservoir
    • Reservoir Bracket
    • Custom Tuned

- Dual linkage

    • Grease fitting for ease of grease
    • Will drop ride height for better cornering
    • Smooths progression ratio of rear suspension so you don't get a spike and that bucking feel of stock link
    • Must use your stock dust caps and sleeve

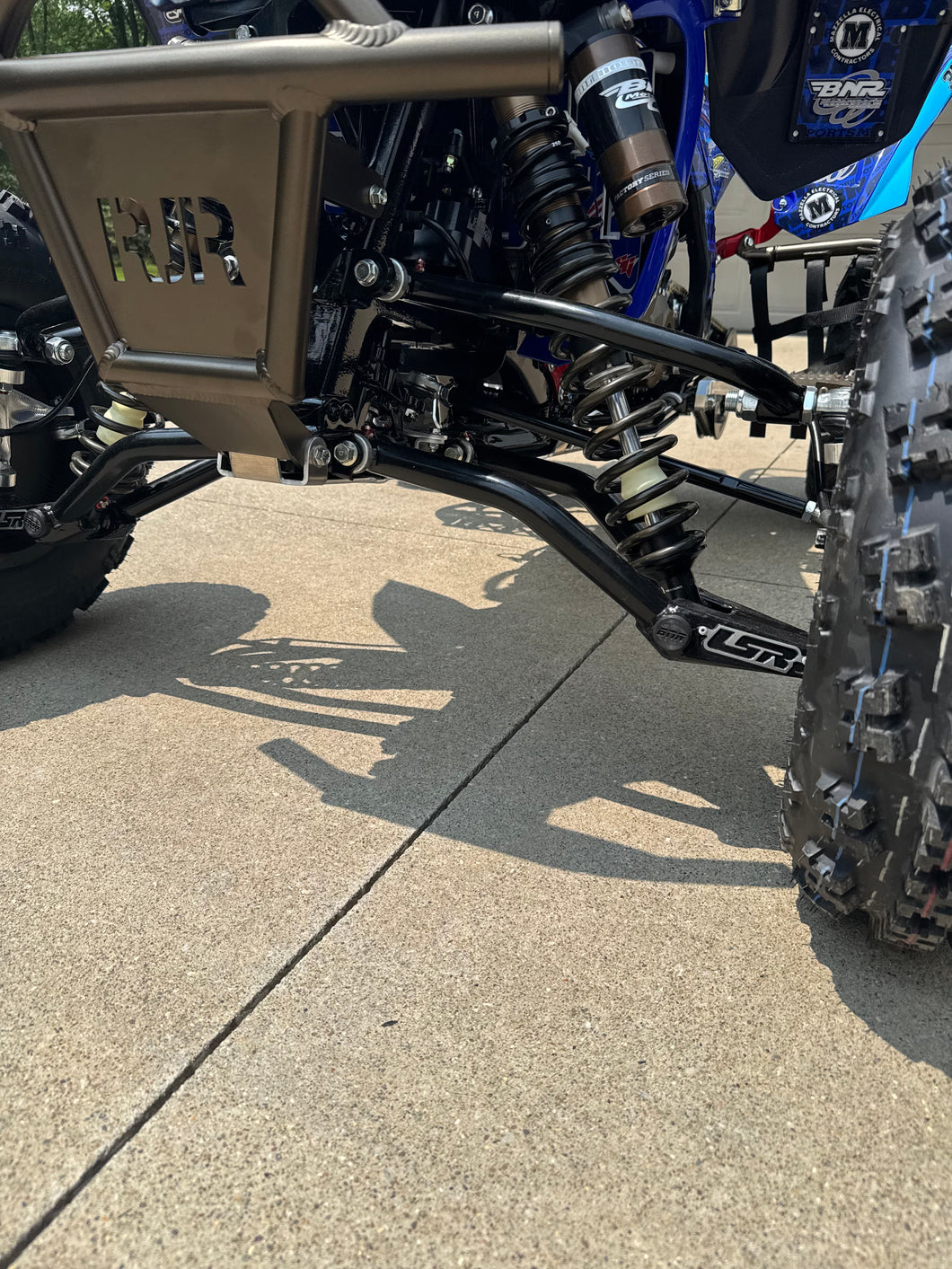

-LoneStar High Ground Clearance A-arms

  • The same geometry as the old-style DC-Pro's with the same XC width of -1 1/8" narrower per side with no forward placement.
  • Completely redesigned the lower arm to feature an entirely boxed in shock mount while also including a high clearance bend to achieve maximum ground clearance.
  • Arms are made out of 4130 Chromoly and are completely tig welded
  • Shock mount has clearance for all aftermarket shocks
  • Kit still includes our tried-and-true caster corrector bracket, and caster spacers

 Following Items Are Only Included with the LTR Package Variant:

-  BNR LTR Steering Stem Flag

    • Eliminates bump steer with the LTR setup

- LSR LTR Spindles

    • Allows LTR geometry on your YFZ450r/x
    • Huge improvement over stock spindle
    • A must have for serious racer
    • Must have a arms equipped with ltr ball joints to use
    • Made in USA
    • ** NEW**  RRP Rock guard bracket included
